UI Kit Builder Integration

This guide demonstrates how to integrate the CometChat Builder configuration system into your Android application. You can easily integrate the same configuration system into your own Android application by following these guided steps.

Prerequisites

Before getting started, make sure you have:

Android Studio (latest version recommended)
Android Device or Emulator with Android API level 26 (Android 8.0) or above
Java 11 or above
Internet connection (required for CometChat services)

Complete Integration Workflow

Design Your Chat Experience - Use the UI Kit Builder to customize layouts, features, and styling.
Review and Export - Review which features will be enabled in your Dashboard, toggle them on/off, and download the generated code package.
Preview Customizations - Optionally, preview the chat experience before integrating it into your project.
Integration - Integrate into your existing application using either the Gradle Plugin or Module Import method.
Customize Further - Explore advanced customization options to tailor the chat experience.

Launch the UI Kit Builder

Log in to your CometChat Dashboard.
Select your application from the list.
Navigate to Integrate → Android → Launch UI Kit Builder.

Integration Options

Choose one of the following integration methods based on your needs:

Option	Best For	Complexity
Gradle Plugin (Recommended)	New projects or existing projects where you want full control over customization	Medium
Module Import	Quick integration when you want a ready-made module to plug-and-play	Easy

Option 1: Gradle Plugin Integration (Recommended)

This method gives you full control over customization and is recommended for most projects.

Step 1: Add CometChat Repository

Add the CometChat Maven repository to your project-level settings.gradle.kts file in both pluginManagement and dependencyResolutionManagement:

pluginManagement {
    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
        maven("https://dl.cloudsmith.io/public/cometchat/cometchat/maven/")
    }
}

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        maven("https://jitpack.io")
        maven("https://dl.cloudsmith.io/public/cometchat/cometchat/maven/")
    }
}

Step 2: Add Jetifier Flag

Add the Jetifier flag to your gradle.properties file:

android.enableJetifier=true

Step 3: Add UI Kit Dependencies

Add the CometChat UI Kit dependencies to your app-level build.gradle.kts:

dependencies {
    // CometChat UIKit
    implementation("com.cometchat:chat-uikit-android:5.1.+")

    // (Optional) Include this if your app uses voice/video calling features
    implementation("com.cometchat:calls-sdk-android:4.1.+")
}

Step 4: Apply the Builder Settings Plugin

Add the CometChat Builder Settings plugin to your app-level build.gradle.kts:

plugins {
    id("com.android.application")
    kotlin("android")
    // Apply the CometChat Builder settings plugin
    id("com.cometchat.builder.settings") version "5.0.1"
}

Sync your project to download the plugin dependencies.

Step 5: Add Configuration JSON File

Copy the cometchat-builder-settings.json file from your exported code into your app module’s root directory (same level as build.gradle.kts).

The cometchat-builder-settings.json file contains all your feature toggles, layout settings, and styling configuration from the UI Kit Builder.

Step 6: Build to Generate Settings

Build your project using Android Studio or run:

./gradlew build

The Builder plugin will automatically generate:

CometChatBuilderSettings.kt — Contains all feature flags and configuration constants
Necessary styles in your theme

Step 7: Copy BuilderSettingsHelper

Copy the BuilderSettingsHelper.kt file from the sample app to your project:

Source: src/main/java/com/cometchat/builder/BuilderSettingsHelper.kt
Destination: src/main/java/com/yourpackage/BuilderSettingsHelper.kt

Update the package declaration in BuilderSettingsHelper.kt to match your project’s package name. Also remove the applySettingsToBottomNavigationView method if you’re not using the sample app’s navigation structure.

Step 8: Add Font Resources

Copy the font folder from the sample app to your project’s resources:

Source: src/main/res/font
Destination: src/main/res/font

Step 9: Set the Builder Theme

Update your AndroidManifest.xml to use the CometChat Builder theme:

<application
    android:theme="@style/CometChat.Builder.Theme"
    ...>
</application>

Step 10: Apply Settings to UI Components

Use the BuilderSettingsHelper to apply your configuration to CometChat UI components:

import com.yourpackage.BuilderSettingsHelper

class MessagesActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        // Apply Builder settings to your UI components
        BuilderSettingsHelper.applySettingsToMessageHeader(binding.messageHeader)
        BuilderSettingsHelper.applySettingsToMessageList(binding.messageList)
        BuilderSettingsHelper.applySettingsToMessageComposer(binding.messageComposer)
    }
}

Apply settings to other components:

// For Users component
BuilderSettingsHelper.applySettingsToUsers(binding.users)

// For Call Logs
BuilderSettingsHelper.applySettingsToCallLogs(binding.callLog)

// For Group Members
BuilderSettingsHelper.applySettingToGroupMembers(binding.groupMembers)

Step 11: Access Generated Constants

You can access the generated constants directly in your code:

import com.cometchat.builder.CometChatBuilderSettings

// Check if a feature is enabled
if (CometChatBuilderSettings.ChatFeatures.CoreMessagingExperience.PHOTOSSHARING) {
    // Enable photo sharing functionality
}

// Access styling constants
val brandColor = CometChatBuilderSettings.Style.Color.BRANDCOLOR
val fontSize = CometChatBuilderSettings.Style.Typography.SIZE

Option 2: Import Sample App as Module

This method is ideal if you want a ready-made module to plug-and-play, or wish to migrate features from the sample app to your main app.

Step 1: Run the Sample App

First, run the exported sample app from the CometChat Dashboard to verify it works correctly.

Step 2: Update AndroidManifest.xml

In the sample app’s AndroidManifest.xml:

In the <application> tag, remove all attributes except android:name
If your app already has its own Application class, remove the sample app’s android:name from the <application> tag and extend your application class with BuilderApplication

Step 3: Update build.gradle.kts

Modify the sample app’s build.gradle.kts:

Remove com.cometchat.builder.settings from the plugins block
Change id("com.android.application") to id("com.android.library")

plugins {
    id("com.android.library")
    kotlin("android")
}

If you have a Java project, change kotlin("android") to id("org.jetbrains.kotlin.android") version "2.2.20".

Step 4: Import as Module

In Android Studio:

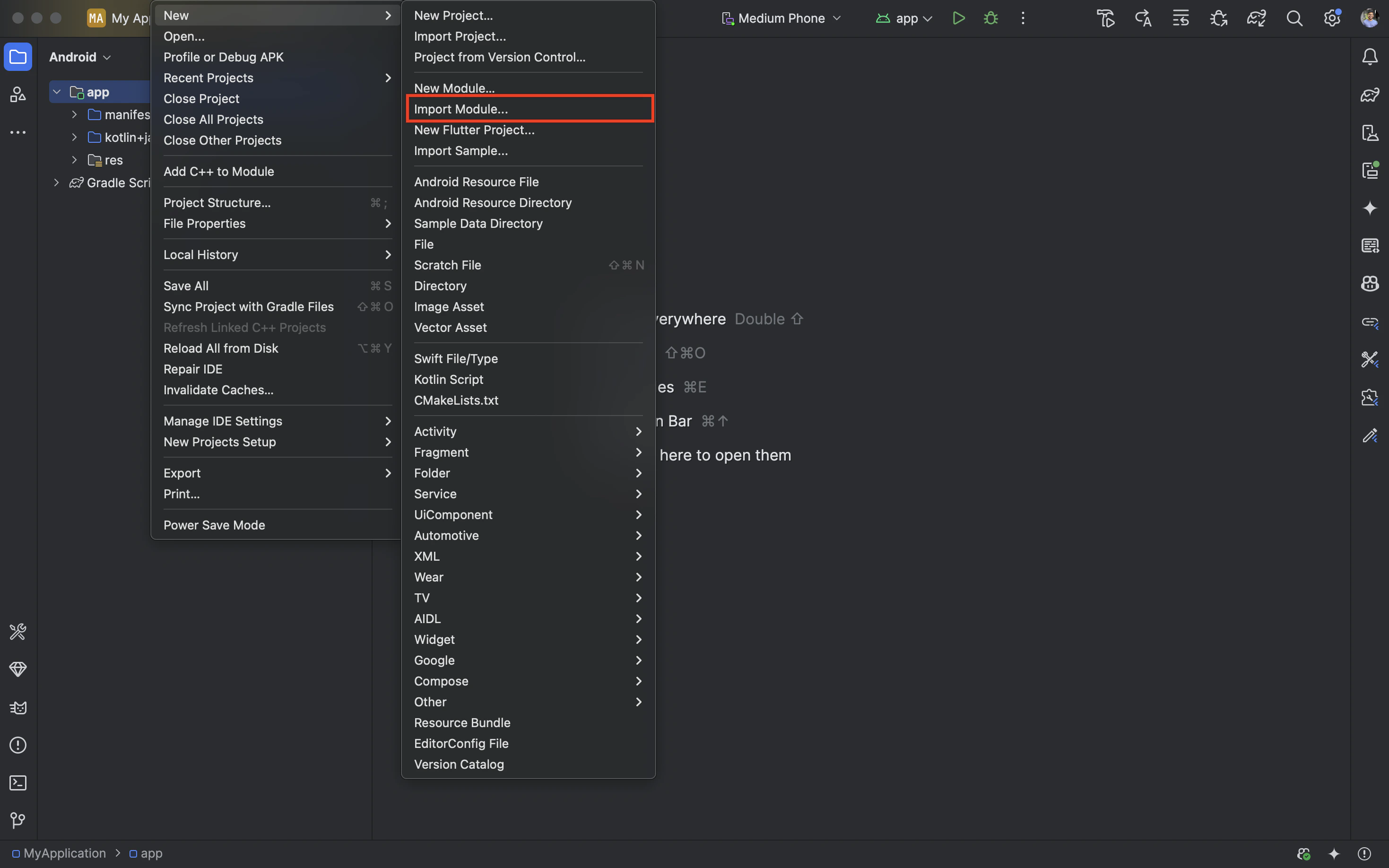

Go to File → New → Import Module

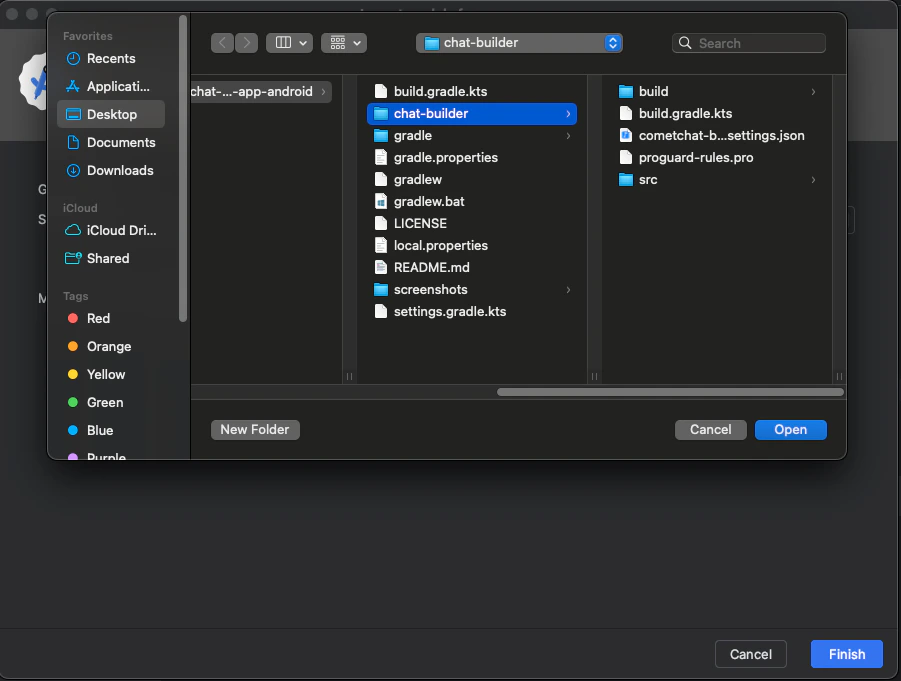

Select the sample app folder
Click Finish

Step 5: Add Module Dependency

Add the module dependency to your app’s build.gradle.kts:

dependencies {
    implementation(project(":chat-builder"))
}

Step 6: Add Jetifier Flag

Add to your gradle.properties:

android.enableJetifier=true

Step 7: Add CometChat Repository

Add the CometChat repository to settings.gradle.kts:

dependencyResolutionManagement {
    repositories {
        // ... other repositories
        maven("https://dl.cloudsmith.io/public/cometchat/cometchat/maven/")
    }
}

Step 8: Verify the Module

Ensure the imported module is visible in your project and contains all necessary files.

Step 9: Launch Activities

Launch CometChat activities based on your app’s state: If CometChat is not initialized or user is not logged in:

val intent = Intent(this@YourActivity, SplashActivity::class.java)
startActivity(intent)

If the user is already logged in:

val intent = Intent(this@YourActivity, HomeActivity::class.java)
startActivity(intent)

Open Messages screen for a User:

val UID: String = "UID"
val intent = Intent(this@YourActivity, MessagesActivity::class.java)
CometChat.getUser(UID, object : CometChat.CallbackListener<User?>() {
    override fun onSuccess(user: User?) {
        intent.putExtra("user", com.google.gson.Gson().toJson(user))
        startActivity(intent)
    }

    override fun onError(e: CometChatException?) {
        Log.e("TAG", "Error fetching user: ${e?.message}")
    }
})

Open Messages screen for a Group:

val GUID: String = "GUID"
val intent = Intent(this@YourActivity, MessagesActivity::class.java)
CometChat.getGroup(GUID, object : CometChat.CallbackListener<Group?>() {
    override fun onSuccess(group: Group?) {
        intent.putExtra("group", com.google.gson.Gson().toJson(group))
        startActivity(intent)
    }

    override fun onError(e: CometChatException?) {
        Log.e("TAG", "Error fetching group: ${e?.message}")
    }
})

Important Guidelines for Changes

Functional Changes: For enabling or disabling features and adjusting configurations, make the necessary updates in the CometChatBuilderSettings.kt file. This file contains all the feature flags and configuration constants.

UI and Theme-related Changes: For any updates related to UI, such as colors, fonts, and styles, you should apply your changes in the themes.xml file of the module itself.

Troubleshooting

Plugin Not Found

Ensure you have internet connectivity during Gradle sync
Check that the plugin version is correct: 5.0.1
Verify the CometChat Maven repository is added to pluginManagement in settings.gradle.kts

CometChatBuilderSettings Not Generated

Make sure cometchat-builder-settings.json is in the correct location (app module root directory)
Clean and rebuild your project: Build > Clean Project > Rebuild Project
Check the Gradle build output for any errors

BuilderSettingsHelper Import Errors

Verify you’ve updated the package declaration to match your project
Check that all CometChatBuilderSettings imports are correct
Ensure the Builder plugin has generated the settings file

Next Steps

Builder Settings

Understand the settings file and feature toggles.

Customizations

Adjust component props, behavior, and UI elements.

Directory Structure

See how the exported code is organized.

UI Kit Theme

Customize colors, typography, and styling to match your brand.
